Specifications

Supplier Name

 N/A PCI Procal Inc.

Manufacturer Part Number

 N/A FFTR-2.25-HT

Series

 N/A FFTR-HT

Axial Dynamic Load Capacity

 N/A 1257 lbf

Axial Static Load Capacity

 N/A 516 lbf

Bearing Element

 N/A Balls - Two Rows

Closure Type

 N/A Sealed

Flange Diameter

 N/A 2.9370 in

Flange Thickness

 N/A 0.5900 in

Lubrication Type

 N/A Sealed for Life

UPC Code

 N/A 841946136251

Number of Rows

 N/A Double

Radial Dynamic Load Capacity

 N/A 2611 lbf

Radial Static Load Capacity

 N/A 2064 lbf

Roller Diameter

 N/A 2.2500 in

Roller Material

 N/A Carbon Steel

Roller Shape

 N/A Double Flanged

Roller Width

 N/A 1.6300 in

Seal Type

 N/A Fluorocarbon Lip

Stud Diameter

 N/A 0.8750 in

Stud Length

 N/A 2.0000 in

Stud Material

 N/A Carbon Steel

Thread Length

 N/A 1.1250 in

Thread Size

 N/A 7/8-14

Prop 65

 N/A Yes

Weight

 N/A 2.61 lb

Features & Benefits

Features & Benefits

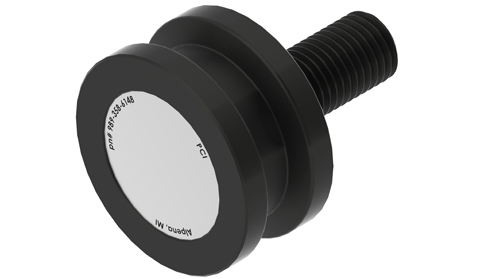

 N/A Double Flanged Track Rollers provide dual direction guidance along the track in applications where side loads are expected. Like most locational units, Double Flanged rollers are used in tandem with plain rollers to prevent overload from misalignment.
