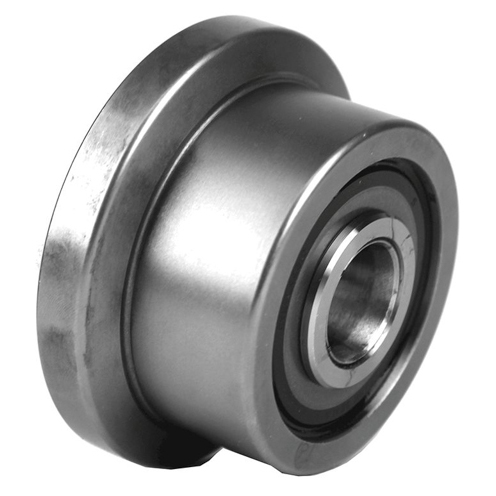

FLRY-3-1/4 Idler Roller
Unit of Measure

Specifications

Supplier Name

 N/A Osborn Load Runners

Manufacturer Part Number

 N/A FLRY-3-1/4

Axial Static Load Capacity

 N/A 12000 lb

Bearing Element

 N/A Tapered Rollers

Bore Diameter

 N/A 3.2500 in

Finish/Coating

 N/A Uncoated

Flange Diameter

 N/A 4.1875 in

Flange Thickness

 N/A 0.5938 in

Lubrication Hole Location

 N/A None

Operating Temperature [Max]

 N/A 250 ºF

Radial Dynamic Load Capacity

 N/A 14270 lb

Radial Static Load Capacity

 N/A 20000 lb

Roller Diameter

 N/A 3.2500 in

Roller Material

 N/A Stainless Steel

Roller Shape

 N/A Single Flanged

Roller Width

 N/A 1.8125 in
