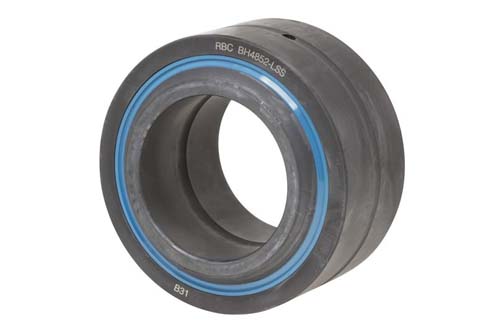

Item # 00086286, RBC® 3.0000 Inch (in) Bore Diameter Spherical Plain Bearing On Motion Industries, Inc.

Unit of Measure

Specifications | Applications

Supplier Name	N/A RBC® Bearings
UPC Code	N/A 637400000363
Manufacturer Part Number	N/A BH4852LSS
Axial Static Load Capacity	N/A 91500 lbf
Ball Diameter	N/A 4.675 in
Bearing Material	N/A 52100 Bearing Quality Steel
Bearing Type	N/A Radial
Bore Diameter	N/A 3.0000 in
Closure Type	N/A Sealed
Inner Ring Material	N/A Steel
Inner Ring Width	N/A 3.022 in
Lubrication Type	N/A Requires Relubrication
Misalignment Angle	N/A 9 º
Operating Temperature Range	N/A -60 to 250 ºF
Outer Ring Material	N/A 52100 Bearing Quality Steel
Outer Ring Width	N/A 2.437 in
Outside Diameter	N/A 5.1250 in
Overall Width	N/A 3.0220 in
Radial Dynamic Load Capacity	N/A 99600 lbf
Radial Static Load Capacity	N/A 398700 lbf
Weight	N/A 9.63 lb

N/A Clevis Ends Hydraulic Cylinder Ends Kingpin Assemblies Linkages Shock Absorber Assemblies Tie Rod Ends
