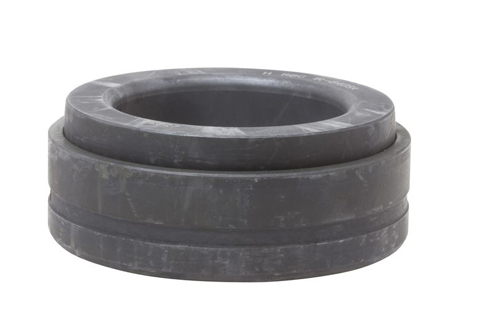

Item # 00104613, RBC® 2.5000 Inch (in) Bore Diameter Spherical Plain Bearing On Motion Industries, Inc.

Unit of Measure

Specifications | Applications

Supplier Name	N/A RBC® Bearings
UPC Code	N/A 637400019242
Manufacturer Part Number	N/A B40SA
Axial Static Load Capacity	N/A 146300 lbf
Ball Diameter	N/A 3.59 in
Bearing Type	N/A Angular Contact
Bore Diameter	N/A 2.5000 in
Closure Type	N/A Open
Inner Ring Material	N/A Chrome Steel
Inner Ring Width	N/A 1.4200 in
Liner Material	N/A Steel
Lubrication Type	N/A Requires Relubrication
Misalignment Angle	N/A 5 º
Operating Temperature Range	N/A -60 to 300 ºF
Outer Ring Material	N/A 52100 Bearing Quality Steel
Outer Ring Width	N/A 1.18 in
Outside Diameter	N/A 3.9375 in
Overall Width	N/A 1.4200 in
Radial Dynamic Load Capacity	N/A 33200 lbf
Radial Static Load Capacity	N/A 133100 lbf
Weight	N/A 2.8 lb

N/A Designed to support heavy unidirectional thrust and combination radial/thrust loads
