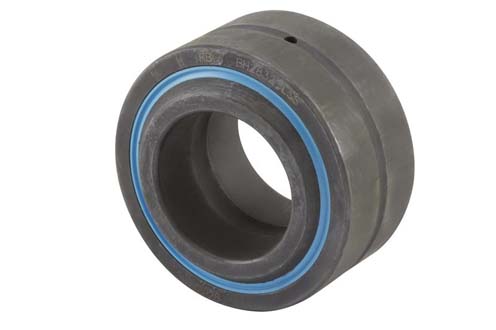

Item # 04238649, RBC® 1.7500 Inch (in) Bore Diameter Spherical Plain Bearing On Motion Industries, Inc.

Unit of Measure

Specifications | Applications

Supplier Name	N/A RBC® Bearings
UPC Code	N/A 637400000189
Manufacturer Part Number	N/A BH2832LSS
Axial Static Load Capacity	N/A 31900 lbf
Ball Diameter	N/A 2.875 in
Bearing Material	N/A 52100 Bearing Quality Steel
Bearing Type	N/A Radial
Bore Diameter	N/A 1.7500 in
Closure Type	N/A Sealed
Inner Ring Material	N/A Steel
Inner Ring Width	N/A 1.82 in
Lubrication Type	N/A Requires Relubrication
Misalignment Angle	N/A 9 º
Operating Temperature Range	N/A -60 to 250 ºF
Outer Ring Material	N/A 52100 Bearing Quality Steel
Outer Ring Width	N/A 1.5 in
Outside Diameter	N/A 3.1875 in
Overall Width	N/A 1.8200 in
Radial Dynamic Load Capacity	N/A 37700 lbf
Radial Static Load Capacity	N/A 150900 lbf
Weight	N/A 2.537 lb

N/A Clevis Ends Hydraulic Cylinder Ends Kingpin Assemblies Linkages Shock Absorber Assemblies Tie Rod Ends
