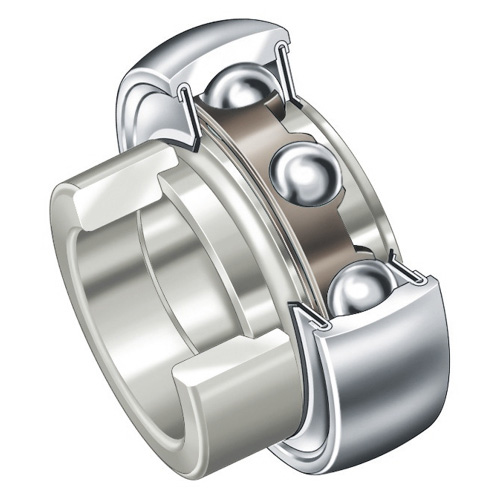

Item # 00585497, INA (Schaeffler) GRA..-NPP-B-AS2 Series 1.2500 Inch (in) Bore Diameter Ball Insert Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A INA (Schaeffler)
Manufacturer Part Number	N/A GRA104-NPP-B-AS2/V
Bore Diameter	N/A 1.2500 in
Bore Type	N/A Round
Finish/Coating	N/A Uncoated
Inner Ring Width	N/A 1.0000 in
Locking Device	N/A Eccentric Collar
Operating Temperature Range	N/A -20 to 120 ºC
Outer Ring Width	N/A 0.7480 in
Outside Diameter	N/A 2.8346 in
Radial Dynamic Load Capacity	N/A 5800 lbf
Radial Static Load Capacity	N/A 3450 lbf
Seal Type	N/A Contact Seal
Series	N/A GRA..-NPP-B-AS2
Weight	N/A 1.48 lb
