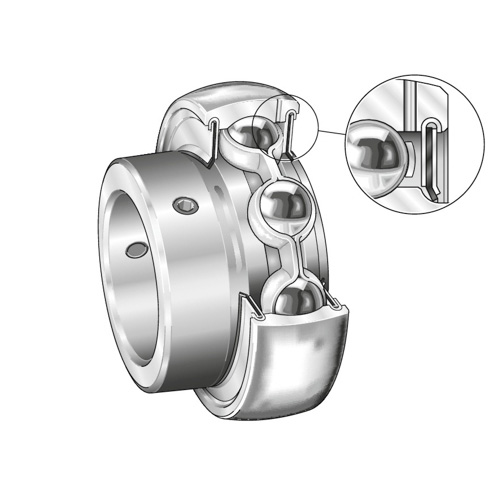

GAY010-NPP-B-AS2/V Radial Insert Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GAY010-NPP-B-AS2/V

Bearing Material

 N/A Chrome Steel

Bore Diameter

 N/A 0.6250 in

Bore Type

 N/A Round

Finish/Coating

 N/A Chrome Plated

Inner Ring Width

 N/A 22 mm

Locking Device

 N/A Set Screw

Operating Temperature Range

 N/A -20 to 120 ºC

Outer Ring Width

 N/A 0.4720 in

Outside Diameter

 N/A 1.5748 in

Radial Dynamic Load Capacity

 N/A 2200 lbf

Radial Static Load Capacity

 N/A 1070 lbf

Seal Type

 N/A Contact Seal

Series

 N/A GAY..-NPP-B-AS2

Weight

 N/A 0.24 lb
