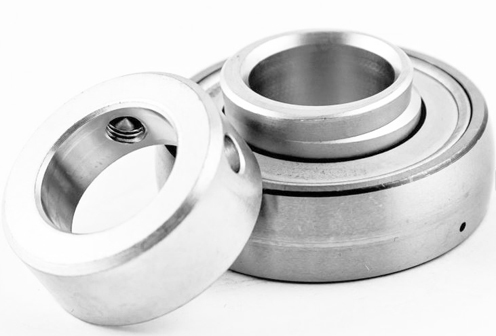

GRAE55-XL-NPPB Radial Insert Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GRAE55-XL-NPPB

Bearing Material

 N/A 52100 Steel

Bore Diameter

 N/A 55 mm

Bore Type

 N/A Round

Inner Ring Width

 N/A 32.5 mm

Locking Device

 N/A Eccentric Collar

UPC Code

 N/A 4012802829549

Outer Ring Width

 N/A 25 mm

Outside Diameter

 N/A 100 mm

Overall Width

 N/A 48.40 mm

Radial Dynamic Load Capacity

 N/A 46000 N

Radial Static Load Capacity

 N/A 29000 N

Seal Type

 N/A P-Seal

Weight

 N/A 2.8 lb
