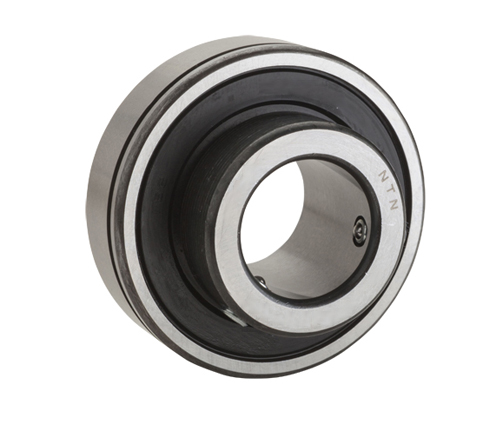

ASS204N
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A ASS204N

Series

 N/A ASS2

Bearing Material

 N/A Through Hardened Steel

Bore Diameter

 N/A 20 mm

Bore Type

 N/A Round

Duty Type

 N/A Standard Duty

Fillet Radius

 N/A 1 mm

Finish/Coating

 N/A Uncoated

Inside Ring Width

 N/A 25 mm

Locking Device

 N/A 2 to 120º Set Screw Collar

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Ring Width

 N/A 14 mm

Outside Diameter

 N/A 47 mm

Overall Width

 N/A 25 mm

Radial Dynamic Load Capacity

 N/A 12800 N

Radial Static Load Capacity

 N/A 6650 N

Seal Type

 N/A Contact Seal

Weight

 N/A 0.29 lb
