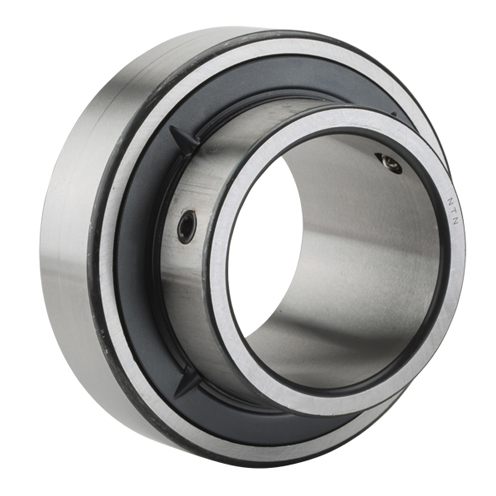

Item # 02283015, NTN UCS2 Series 2.4409 Inch (in) Outside Diameter Ball Insert Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A NTN Bearing Company
Manufacturer Part Number	N/A UCS206-103C4
Series	N/A UCS2
Bearing Material	N/A Through Hardened Steel
Bore Diameter	N/A 1.1250 in
Bore Type	N/A Round
Duty Type	N/A Standard Duty
Fillet Radius	N/A 0.0394 in
Finish/Coating	N/A Uncoated
Inside Ring Width	N/A 1.5000 in
Locking Device	N/A 2 to 120º Set Screw Collar
Maximum Speed	N/A 4900 rpm
Operating Temperature Range	N/A -40 to 250 ºF
Outside Ring Width	N/A 0.7480 in
Outside Diameter	N/A 2.4409 in
Overall Width	N/A 1-1/2 in
Radial Dynamic Load Capacity	N/A 4400 lbf
Radial Static Load Capacity	N/A 2540 lbf
Seal Type	N/A Contact Seal
Weight	N/A 0.8 lb
