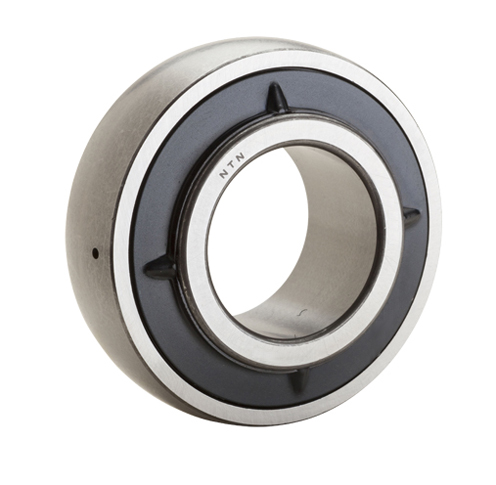

UK213D1 Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A UK213D1

Series

 N/A UK2

Bearing Material

 N/A Through Hardened Steel

Bore Diameter

 N/A 65 mm

Bore Type

 N/A Tapered 1:12

Duty Type

 N/A Intermediate Duty

Finish/Coating

 N/A Uncoated

Inside Ring Width

 N/A 40 mm

Locking Device

 N/A Adapter Mount

Maximum Speed

 N/A 2400 rpm

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Ring Width

 N/A 32 mm

Outside Diameter

 N/A 120 mm

Overall Width

 N/A 40 mm

Radial Dynamic Load Capacity

 N/A 57500 N

Radial Static Load Capacity

 N/A 40000 N

Seal Type

 N/A Contact Seal

Weight

 N/A 3.17 lb
