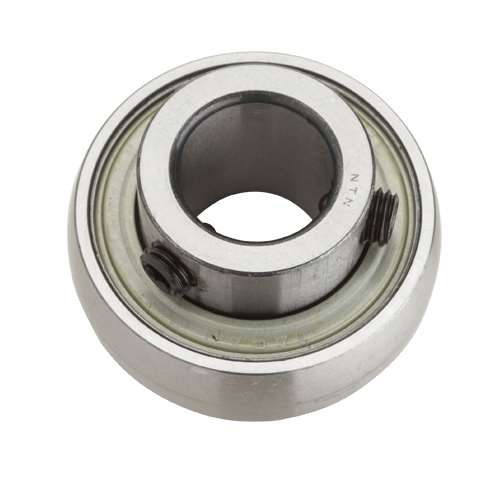

UC311D1 Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A UC311D1

Series

 N/A UC3

Bearing Material

 N/A Through Hardened Steel

Bore Diameter

 N/A 55 mm

Bore Type

 N/A Round

Duty Type

 N/A Heavy-Duty

Fillet Radius

 N/A 2.5 mm

Finish/Coating

 N/A Uncoated

Inside Ring Width

 N/A 66 mm

Locking Device

 N/A Set Screw Collar

Maximum Speed

 N/A 2600 rpm

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Ring Width

 N/A 34 mm

Outside Diameter

 N/A 120 mm

Overall Width

 N/A 66 mm

Radial Dynamic Load Capacity

 N/A 71500 N

Radial Static Load Capacity

 N/A 45000 N

Seal Type

 N/A Contact Seal

Weight

 N/A 4.76 lb
