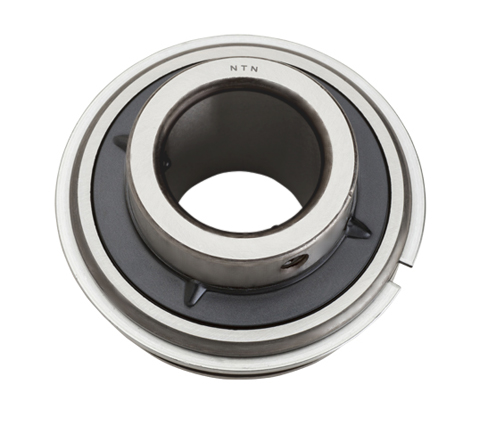

UCS207LD1NR
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A UCS207LD1NR

Series

 N/A UCS2

Bearing Material

 N/A Through Hardened Steel

Bore Diameter

 N/A 35 mm

Bore Type

 N/A Round

Duty Type

 N/A Standard Duty

Fillet Radius

 N/A 1.5 mm

Finish/Coating

 N/A Uncoated

Inside Ring Width

 N/A 42.9 mm

Locking Device

 N/A 2 to 120º Set Screw Collar

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Ring Width

 N/A 20 mm

Outside Diameter

 N/A 72 mm

Overall Width

 N/A 42.90 mm

Radial Dynamic Load Capacity

 N/A 25700 N

Radial Static Load Capacity

 N/A 15300 N

Seal Type

 N/A Contact Seal
