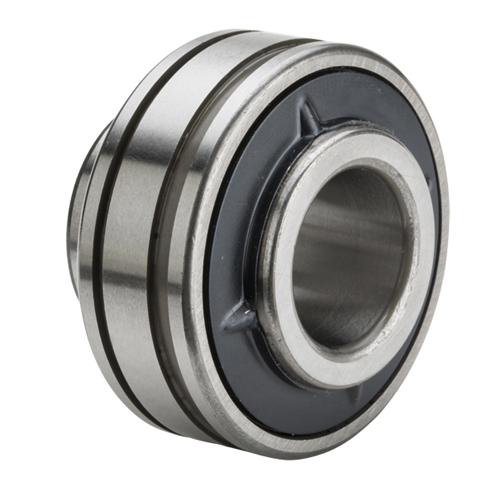

Item # 04544684, NTN UCS2 Series 2.8346 Inch (in) Outside Diameter Ball Insert Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A NTN Bearing Company
Manufacturer Part Number	N/A UCS207-107LD1N
Series	N/A UCS2
Bearing Material	N/A Through Hardened Steel
Bore Diameter	N/A 1.4375 in
Bore Type	N/A Round
Duty Type	N/A Standard Duty
Fillet Radius	N/A 0.0591 in
Finish/Coating	N/A Uncoated
Inside Ring Width	N/A 1.6890 in
Locking Device	N/A 2 to 120º Set Screw Collar
Maximum Speed	N/A 4200 rpm
Operating Temperature Range	N/A -40 to 250 ºF
Outside Ring Width	N/A 0.7874 in
Outside Diameter	N/A 2.8346 in
Overall Width	N/A 1.689 in
Radial Dynamic Load Capacity	N/A 5800 lbf
Radial Static Load Capacity	N/A 3450 lbf
Seal Type	N/A Contact Seal
Weight	N/A 1.01 lb
