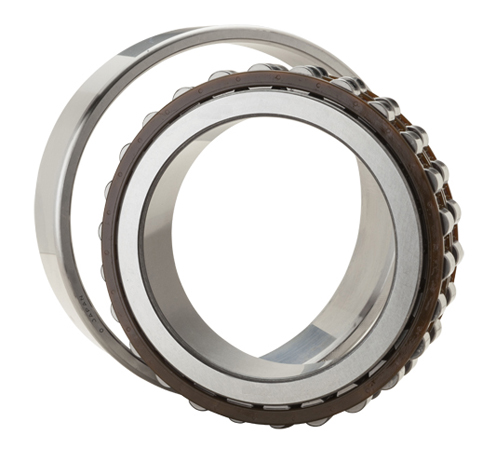

NN4940KD1C1NAP5 Cylindrical Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A NN4940KD1C1NAP5

Series

 N/A NN

Bearing Material

 N/A Hardened Alloy Steel

Bore Diameter

 N/A 200 mm

Bore Type

 N/A Tapered 1:12

Cage Material

 N/A High Strength, 2-Piece, Machined Brass

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 555000 N

Fillet Radius

 N/A 2.1 mm

Finish/Coating

 N/A Uncoated

Flanges

 N/A (3) Inner Ring

Internal Clearance

 N/A C1NA

Maximum Speed

 N/A 2400 rpm

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Diameter

 N/A 280 mm

Overall Width

 N/A 80 mm

Precision Rating

 N/A International Organization for Standardization (ISO) Class 5

Number of Rows

 N/A Double-Row

Static Load Rating

 N/A 1180000 N

Weight

 N/A 31.75 lb
