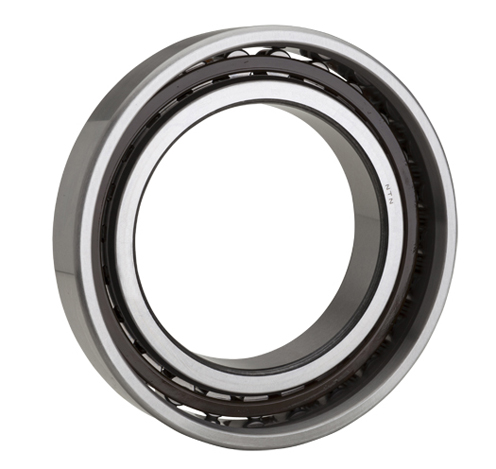

N1012HSKC0NAP4 Cylindrical Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A N1012HSKC0NAP4

Series

 N/A N10

Bearing Material

 N/A Hardened Alloy Steel

Bore Diameter

 N/A 60 mm

Bore Type

 N/A Tapered 1:12

Cage Material

 N/A High Strength, 2-Piece, Machined Brass

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 40000 N

Fillet Radius

 N/A 1.1 mm

Finish/Coating

 N/A Uncoated

Flanges

 N/A (2) Inner Ring

Internal Clearance

 N/A C0NA

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Ring Width

 N/A 18 mm

Outside Diameter

 N/A 95 mm

Overall Width

 N/A 18 mm

Precision Rating

 N/A P4

Ring Separation

 N/A Separable Outer Ring

Number of Rows

 N/A Single-Row

Static Load Rating

 N/A 48600 N

Weight

 N/A 0.97 lb
