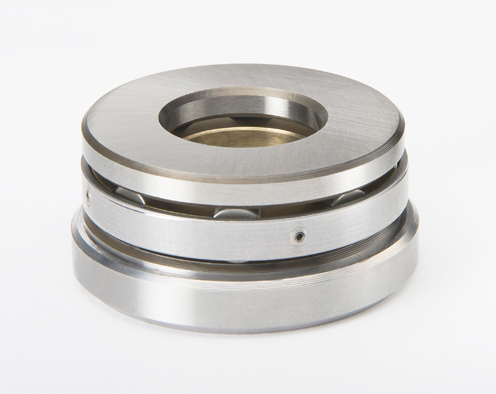

RTW609 Thrust Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A RTW609

Bore Diameter

 N/A 1-1/2 in

Dynamic Load Rating

 N/A 21300 lbf

Maximum Speed

 N/A 4000 rpm

Outside Diameter

 N/A 3.1250 in

Overall Width

 N/A 1-1/16 in

Series

 N/A RTW

Static Load Rating

 N/A 49500 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly

Weight

 N/A 1.61 lb
