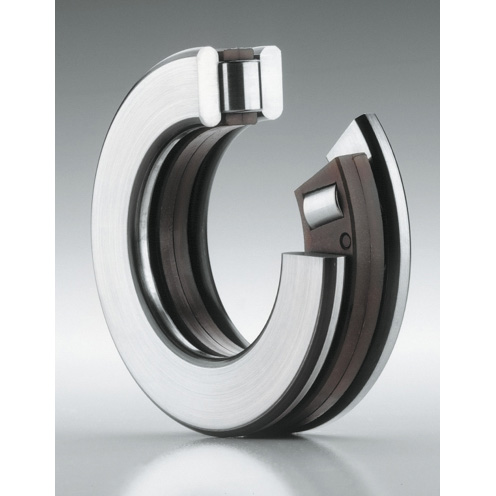

81108-TV Thrust Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 81108-TV

Bore Diameter

 N/A 40 mm

Cage Material

 N/A Plastic

Compatible Washer

 N/A GS81108 LS4060 WS81108

Dynamic Load Rating

 N/A 12600 lbf

Fillet Radius

 N/A 0.6 mm

Maximum Speed

 N/A 6000 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 60 mm

Overall Width

 N/A 13 mm

Series

 N/A 811

Static Load Rating

 N/A 33000 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly with Washers

Weight

 N/A 0.280 lb
