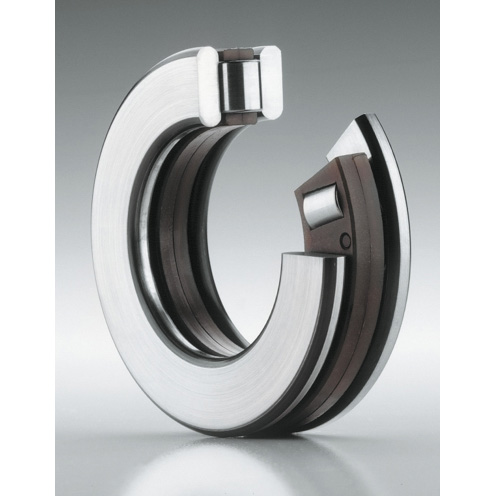

81109-TV Thrust Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 81109-TV

Bore Diameter

 N/A 45 mm

Cage Material

 N/A Plastic

Compatible Washer

 N/A GS81109 LS4565 WS81109

Dynamic Load Rating

 N/A 13300 lbf

Fillet Radius

 N/A 0.6 mm

Maximum Speed

 N/A 5000 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 65 mm

Overall Width

 N/A 14 mm

Series

 N/A 811

Static Load Rating

 N/A 37000 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly with Washers

Weight

 N/A 0.340 lb
