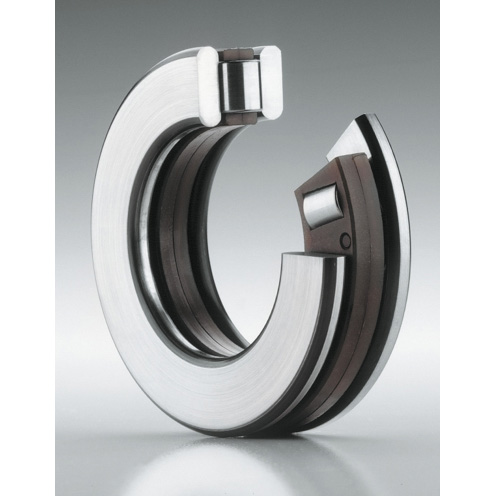

81112-TV Thrust Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 81112-TV

Bore Diameter

 N/A 60 mm

Cage Material

 N/A Plastic

Compatible Washer

 N/A GS81112 LS6085 WS81112

Dynamic Load Rating

 N/A 23200 lbf

Fillet Radius

 N/A 1 mm

Maximum Speed

 N/A 4000 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 85 mm

Overall Width

 N/A 17 mm

Series

 N/A 811

Static Load Rating

 N/A 71000 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly with Washers

Weight

 N/A 0.7 lb
