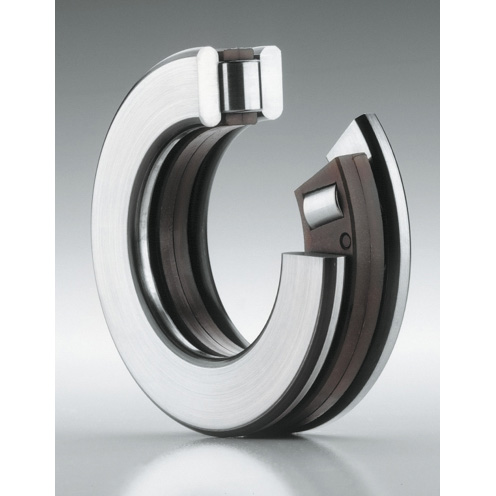

Item # 00134346, INA (Schaeffler) 811 Series 80 Millimeter (mm) Bore Diameter Cylindrical Roller Thrust Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A INA (Schaeffler)
Manufacturer Part Number	N/A 81116-TV
Bore Diameter	N/A 80 mm
Cage Material	N/A Plastic
Compatible Washer	N/A GS81116 LS80105 WS81116
Dynamic Load Rating	N/A 23800 lbf
Fillet Radius	N/A 1 mm
Maximum Speed	N/A 3100 rpm
Operating Temperature Range	N/A -20 to 120 ºC
Outside Diameter	N/A 105 mm
Overall Width	N/A 19 mm
Series	N/A 811
Static Load Rating	N/A 79000 lbf
Thrust Bearing Type	N/A Roller and Cage Assembly with Washers
Weight	N/A 1.06 lb
