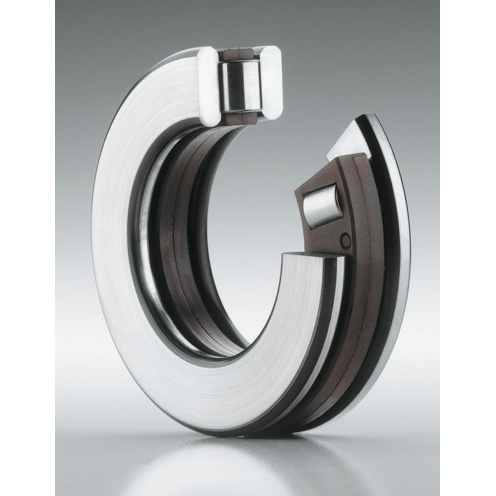

Item # 00134413, INA (Schaeffler) 812 Series 85 Millimeter (mm) Bore Diameter Cylindrical Roller Thrust Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A INA (Schaeffler)
Manufacturer Part Number	N/A 81217-TV
Bore Diameter	N/A 85 mm
Cage Material	N/A Plastic
Compatible Washer	N/A GS81217 WS81217
Dynamic Load Rating	N/A 48800 lbf
Fillet Radius	N/A 1 mm
Maximum Speed	N/A 2700 rpm
Operating Temperature Range	N/A -20 to 120 ºC
Outside Diameter	N/A 125 mm
Overall Width	N/A 31 mm
Series	N/A 812
Static Load Rating	N/A 148000 lbf
Thrust Bearing Type	N/A Roller and Cage Assembly with Washers
Weight	N/A 3.17 lb
