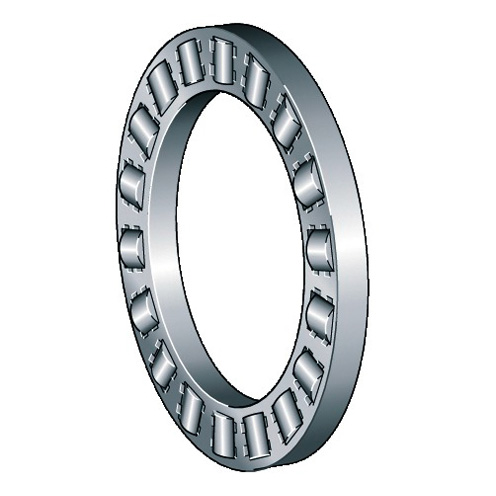

K81136-M Thrust Roller Cage Assembly
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A K81136-M

Bore Diameter

 N/A 180 mm

Cage Material

 N/A Brass

Compatible Washer

 N/A WS81136

Dynamic Load Rating

 N/A 76000 lbf

Maximum Speed

 N/A 1400 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 225 mm

Overall Width

 N/A 14 mm

Series

 N/A K811

Static Load Rating

 N/A 290000 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly with Washers

Weight

 N/A 3.85 lb
