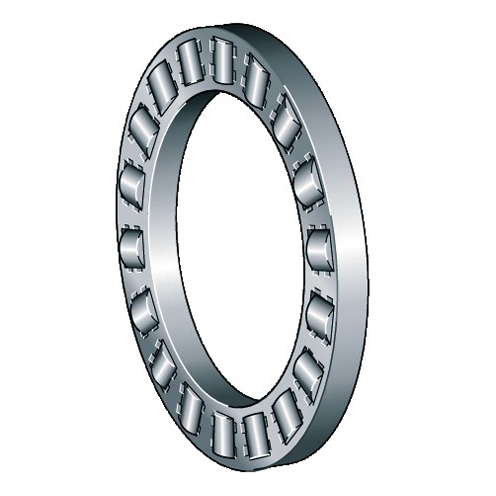

K81109-TV Thrust Roller Cage Assembly
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A K81109-TV

Bore Diameter

 N/A 45 mm

Cage Material

 N/A Plastic

Compatible Washer

 N/A LS4565 WS81109

Dynamic Load Rating

 N/A 13300 lbf

Maximum Speed

 N/A 5000 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 65 mm

Overall Width

 N/A 6 mm

Series

 N/A K811

Static Load Rating

 N/A 36500 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly with Washers

Weight

 N/A 0.09 lb
