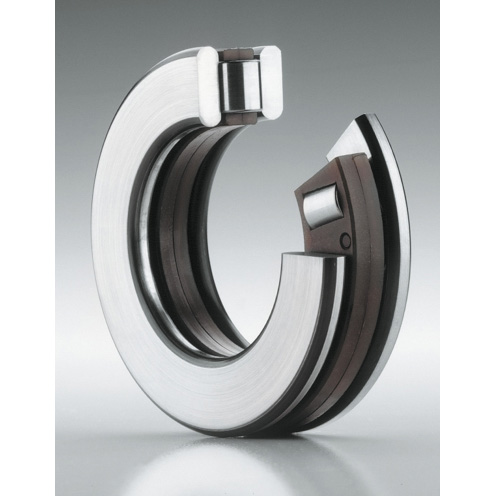

89320-M Thrust Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 89320-M

Bore Diameter

 N/A 100 mm

Cage Material

 N/A Plastic

Compatible Washer

 N/A GS89320 WS89320

Dynamic Load Rating

 N/A 85000 lbf

Fillet Radius

 N/A 1.5 mm

Maximum Speed

 N/A 2100 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 170 mm

Overall Width

 N/A 42 mm

Series

 N/A 893

Static Load Rating

 N/A 315000 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly with Washers

Weight

 N/A 12.04 lb
