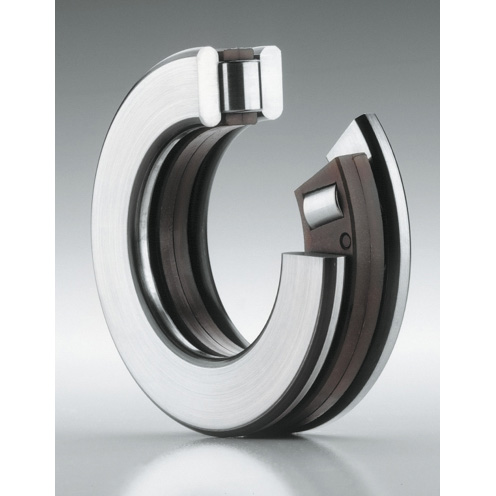

81134-TV Thrust Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 81134-TV

Bore Diameter

 N/A 170 mm

Cage Material

 N/A Plastic

Compatible Washer

 N/A GS81134 WS81134

Dynamic Load Rating

 N/A 81000 lbf

Fillet Radius

 N/A 1.1 mm

Maximum Speed

 N/A 1500 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 215 mm

Overall Width

 N/A 34 mm

Series

 N/A 811

Static Load Rating

 N/A 310000 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly with Washers

Weight

 N/A 7.77 lb
