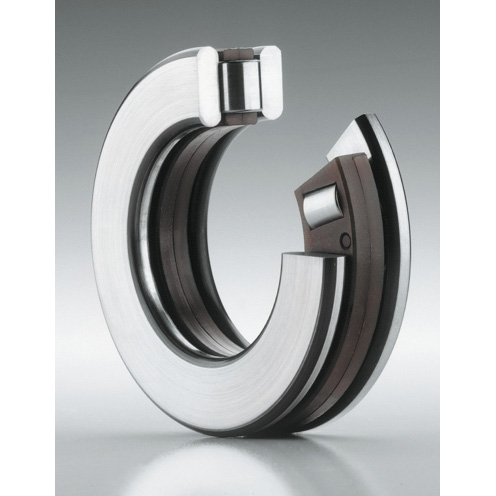

81140-M Thrust Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 81140-M

Bore Diameter

 N/A 200 mm

Cage Material

 N/A Brass

Compatible Washer

 N/A GS81140 WS81140

Dynamic Load Rating

 N/A 88000 lbf

Fillet Radius

 N/A 1.1 mm

Maximum Speed

 N/A 1300 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 250 mm

Overall Width

 N/A 37 mm

Series

 N/A 811

Static Load Rating

 N/A 348000 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly with Washers

Weight

 N/A 13.07 lb
