Supplier Name |

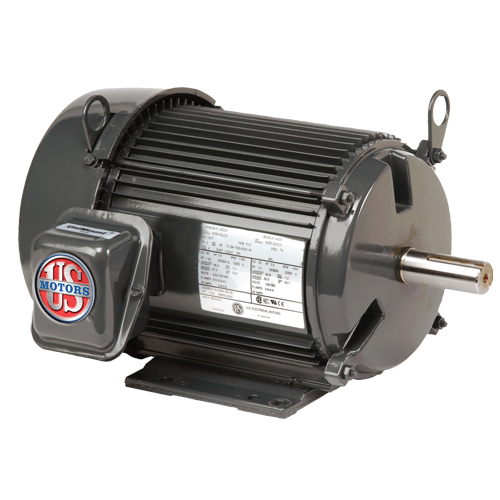

N/A US Motors (Nidec) |
Manufacturer Part Number |
N/A U15L9C |
Base Speed |
N/A 1770 rpm880 rpm |
Duty/Condition Type |
N/A Continuous Duty |
Enclosure Type |
N/A Totally Enclosed Fan Cooled (TEFC) |
Frame Material |
N/A Aluminum |
Frame Size |
N/A 254T |
Frequency |
N/A 60 Hz |
Full Load Current |
N/A 18.60 A |
Full Load Efficiency |
N/A 87.50 % |
Harmonization Code |
N/A 8501.52.4000 |
Includes |
N/A C&D Flange |
Insulation Class |
N/A F |
Type |
N/A Two Speed Motor |
Power for 4 Poles |
N/A 15 hp |
Power for 8 Poles |
N/A 3-3/4 hp |
Phase |
N/A 3 |
Number of Poles |
N/A 4 8 |
Supply Voltage |
N/A 460 V |
Mounting Type |
N/A Footed Horizontal |
Shaft Diameter |
N/A 1.63 in |
Standards Met |
N/A National Electrical Manufacturers Association (NEMA) |
Synchronous Speed |
N/A 900 rpm1800 rpm |
Weight |
N/A 210.00 lb |
