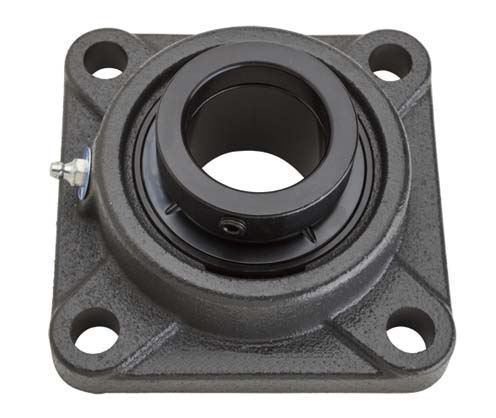

UELFU-2.1/4 Flange Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A UELFU-2.1/4

Series

 N/A UELFU2

Bolt Center-to-Center Length

 N/A 5.6250 in

Bore Diameter

 N/A 2.2500 in

Closure Type

 N/A Open

Duty Type

 N/A Light Duty

Housing Material

 N/A Cast Iron

Locking Device

 N/A Eccentric Collar

UPC Code

 N/A 4547359234695

Mounting Type

 N/A 4-Bolt Flange

Operating Temperature Range

 N/A -40 to 250 ºF

Overall Length/Diameter

 N/A 6.8750 in

Radial Dynamic Load Capacity

 N/A 52500 N

Radial Static Load Capacity

 N/A 36000 N
