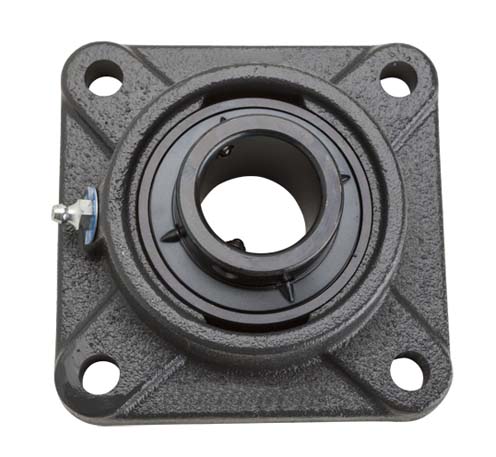

UCFU-1/2 Flange Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A UCFU-1/2

Series

 N/A UCFU

Bolt Center-to-Center Length

 N/A 2.1250 in

Bore Diameter

 N/A 0.5000 in

Closure Type

 N/A Open

Duty Type

 N/A Light Duty

Housing Material

 N/A Cast Iron

Locking Device

 N/A Set Screw Collar

UPC Code

 N/A 4547359217285

Mounting Type

 N/A 4-Bolt Flange

Operating Temperature Range

 N/A -40 to 250 ºF

Overall Length/Diameter

 N/A 3.0000 in

Radial Dynamic Load Capacity

 N/A 9600 N

Radial Static Load Capacity

 N/A 4600 N
