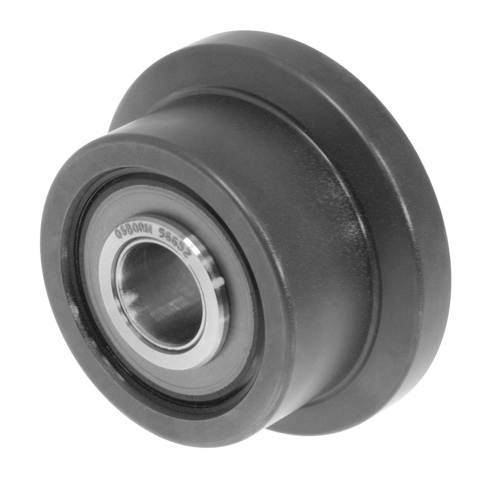

HPJA-76 Load Runner
Unit of Measure

Specifications

Supplier Name

 N/A Osborn Load Runners

Manufacturer Part Number

 N/A HPJA-76

Bearing Element

 N/A Balls

Bore Diameter

 N/A 25 mm

Finish/Coating

 N/A Chrome Plated Zinc Plated

Flange Diameter

 N/A 98 mm

Flange Thickness

 N/A 13.5 mm

Operating Temperature Range

 N/A -30 to 225 ºF

Radial Dynamic Load Capacity

 N/A 63480 lb

Radial Static Load Capacity

 N/A 88960 lb

Roller Diameter

 N/A 76 mm

Roller Material

 N/A Stainless Steel

Roller Shape

 N/A Single Flanged

Roller Width

 N/A 46 mm

Weight

 N/A 2.73 lb
