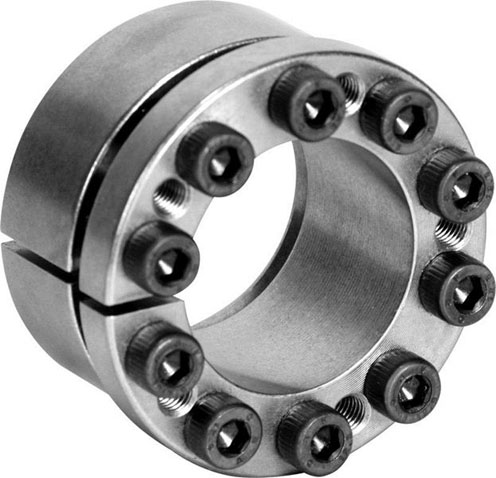

C193M-20 Keyless Locking Assembly
Unit of Measure

Specifications

Supplier Name

 N/A Climax Metal Products

Manufacturer Part Number

 N/A C193M-20

Series

 N/A C193

Component Bore Diameter

 N/A 1.5625 in

Finish

 N/A Uncoated

Flange Type

 N/A Flanged

Harmonization Code

 N/A 8483.60.8000

Hub Contact Pressure

 N/A 15159 psi

Inside Diameter

 N/A 20 mm

Keyless Bushing Type

 N/A Cap Screw Clamping

Length Through Bore

 N/A 0.9840 in

Material

 N/A Steel

Maximum Transmitted Thrust

 N/A 5277 lbf

Maximum Transmitted Torque

 N/A 173.2 ft·lb

Mountable Length

 N/A 0.754 in

Mounting Type

 N/A Internal

Number of Locking Screws

 N/A 6

Number of Tapers

 N/A 1

Outside Diameter

 N/A 1.5625 in

Overall Length

 N/A 1.1810 in

Shaft Contact Pressure

 N/A 30082 psi

Weight

 N/A 6.4 oz
