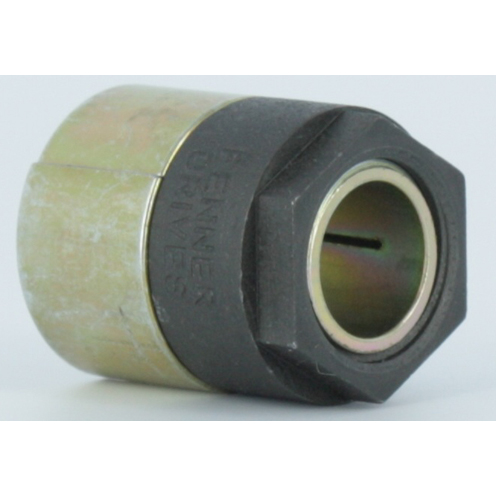

6202110 0.4375 Trantorque
Unit of Measure

Specifications

Supplier Name

 N/A Fenner Drives

Manufacturer Part Number

 N/A 6202110EN

Component Bore Diameter

 N/A 0.8750 in

Finish/Coating

 N/A Nickel Plated

Flange Type

 N/A No Flange

Hub Contact Pressure

 N/A +14828 psi

Inside Diameter

 N/A 0.4375 in

Keyless Bushing Type

 N/A Collar Nut Clamping

Length Through Bore

 N/A 1.0000 in

Material

 N/A Steel

Maximum Transmitted Thrust

 N/A 2445.6 lb

Maximum Transmitted Torque

 N/A 535.2 in·lb

Mountable Length

 N/A 1/2 in

Mounting Type

 N/A Internal

Number of Tapers

 N/A 1

Outside Diameter

 N/A 0.8750 in

Overall Length

 N/A 1.0000 in

Series

 N/A Trantorque Mini

Shaft Contact Pressure

 N/A +37070 psi

Weight

 N/A 0.09 lb
