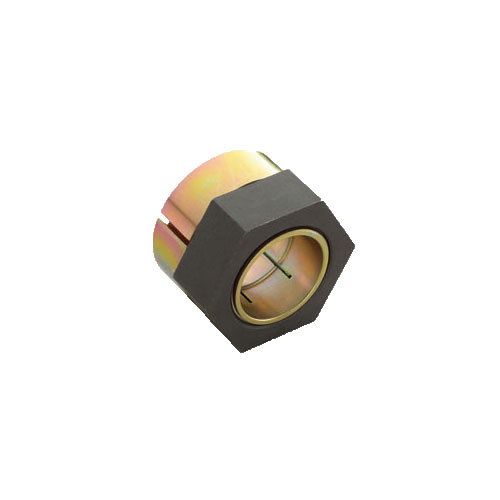

6940320 TTQS 1.2500 Trantorque
Unit of Measure

Specifications

Supplier Name

 N/A Fenner Drives

Manufacturer Part Number

 N/A 6940320UP

Component Bore Diameter

 N/A 2.0000 in

Finish/Coating

 N/A Uncoated

Flange Type

 N/A No Flange

Hub Contact Pressure

 N/A +15890 psi

Inside Diameter

 N/A 1.2500 in

Keyless Bushing Type

 N/A Collar Nut Clamping

Length Through Bore

 N/A 1.2500 in

Material

 N/A Steel

Maximum Transmitted Thrust

 N/A 6889 lb

Maximum Transmitted Torque

 N/A 359 ft·lb

Mountable Length

 N/A 1/2 in

Mounting Type

 N/A Internal

Number of Tapers

 N/A 1

Outside Diameter

 N/A 2.0000 in

Overall Length

 N/A 1-1/4 in

Series

 N/A Trantorque S

Shaft Contact Pressure

 N/A +25424 psi
