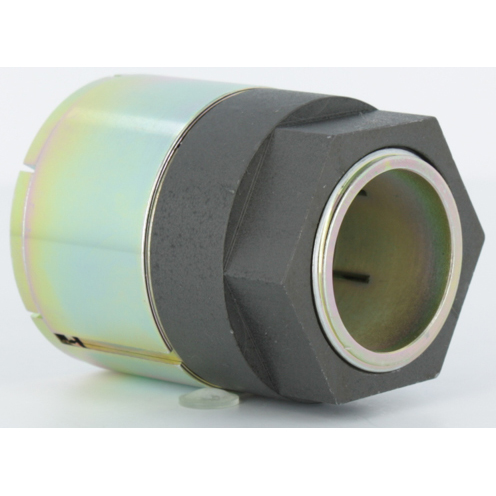

6980400UP Trantorque 1.5000 NT
Unit of Measure

Specifications

Supplier Name

 N/A Fenner Drives

Manufacturer Part Number

 N/A 6980400UP

Component Bore Diameter

 N/A 2.3750 in

Finish/Coating

 N/A Uncoated

Flange Type

 N/A No Flange

Hub Contact Pressure

 N/A +3060 psi

Inside Diameter

 N/A 1.5000 in

Keyless Bushing Type

 N/A Collar Nut Clamping

Length Through Bore

 N/A 3.0938 in

Material

 N/A Steel

Maximum Transmitted Thrust

 N/A 3939 lb

Maximum Transmitted Torque

 N/A 246 ft·lb

Mountable Length

 N/A 1-7/16 in

Mounting Type

 N/A Internal

Number of Tapers

 N/A 1

Outside Diameter

 N/A 2.3750 in

Overall Length

 N/A 3-3/32 in

Series

 N/A Trantorque Mini

Shaft Contact Pressure

 N/A +4845 psi
