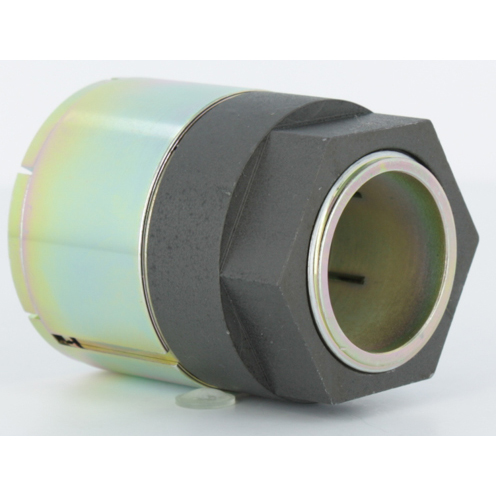

6980160UP Trantorque
Unit of Measure

Specifications

Supplier Name

 N/A Fenner Drives

Manufacturer Part Number

 N/A 6980160UP

Component Bore Diameter

 N/A 1.5000 in

Finish/Coating

 N/A Uncoated

Flange Type

 N/A No Flange

Hub Contact Pressure

 N/A +8580 psi

Inside Diameter

 N/A 0.7500 in

Keyless Bushing Type

 N/A Collar Nut Clamping

Length Through Bore

 N/A 1.8125 in

Material

 N/A Steel

Maximum Transmitted Thrust

 N/A 3336 lb

Maximum Transmitted Torque

 N/A 104 ft·lb

Mountable Length

 N/A 11/16 in

Mounting Type

 N/A Internal

Number of Tapers

 N/A 1

Outside Diameter

 N/A 1.50 in

Overall Length

 N/A 1-13/16 in

Series

 N/A Trantorque Mini

Shaft Contact Pressure

 N/A +17160 psi
