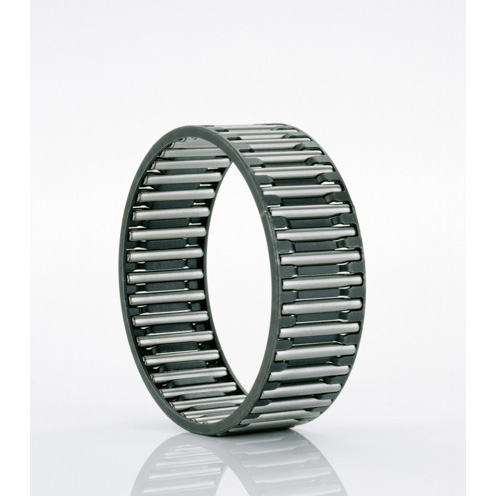

C243016 Needle Roller Cage Assembly
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A C243016

Bore Diameter

 N/A 1.5000 in

Cage Material

 N/A Steel

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 10800 lbf

Flanges

 N/A No Flange

Lubrication Hole Type

 N/A No Holes

Maximum Speed

 N/A 11400 rpm

Needle Bearing Type

 N/A Roller and Cage Assembly

Outside Diameter

 N/A 1.8750 in

Overall Width

 N/A 1.0000 in

Precision Rating

 N/A Not Rated

Series

 N/A C

Standards Met

 N/A American Bearing Manufacturers Association (ABMA) 18.2 - 1982

Static Load Rating

 N/A 16700 lbf

Weight

 N/A 0.19 lb
