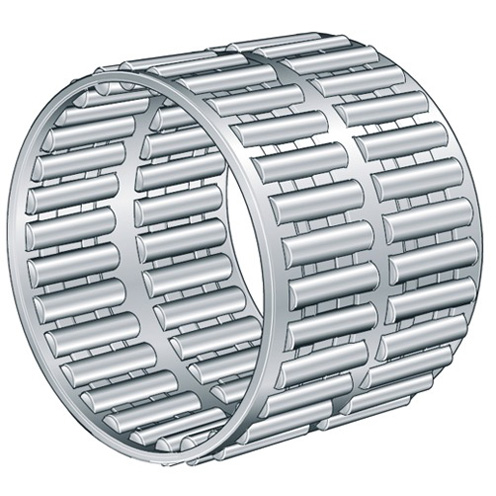

K80X88X46-ZW Needle Roller Cage Assembly
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A K80X88X46-ZW

Bore Diameter

 N/A 80 mm

Cage Material

 N/A Steel

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 19800 lbf

Flanges

 N/A No Flange

Lubrication Hole Type

 N/A No Holes

Maximum Speed

 N/A 6000 rpm

Needle Bearing Type

 N/A Roller and Cage Assembly

Number of Rows

 N/A Double-Row

Outside Diameter

 N/A 88 mm

Overall Width

 N/A 46 mm

Precision Rating

 N/A Not Rated

Series

 N/A K

Static Load Rating

 N/A 52000 lbf

Weight

 N/A 0.69 lb
