Unit of Measure

Specifications

Brands

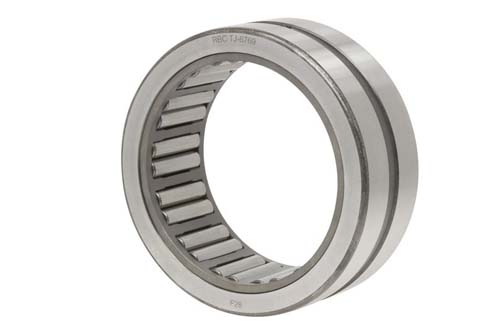

 N/A TandemRoller®

Supplier Name

 N/A RBC® Bearings

Manufacturer Part Number

 N/A TJ6769

UPC Code

 N/A 637400017811

Prop 65

 N/A Yes

Bore Diameter

 N/A 4.5 in

Cage Material

 N/A Steel

Closure Type

 N/A Open

Dynamic Load Capacity

 N/A 49600 lbf

Fillet Radius

 N/A 0.035 in

Finish/Coating

 N/A Chrome Steel

Flanges

 N/A No Flange

Lubrication Hole Type

 N/A Hole on Outer Ring

Maximum Speed

 N/A 2600 rpm

Needle Bearing Type

 N/A Machined Bearing with No Inner Ring

Number of Rows

 N/A 1

Operating Temperature Range

 N/A -40 to +300 ºF

Outside Diameter

 N/A 6.00 in

Overall Width

 N/A 2.250 in

Precision Rating

 N/A Not Rated

Static Load Capacity

 N/A 119000 lbf

Duty Type

 N/A Heavy-Duty

Weight

 N/A 6.3 lb

Applications

Applications

 N/A Gearboxes Machine Tools Paper Converting Machines Pumps Sheave Blocks Steel Mill Equipment Textile Machinery
