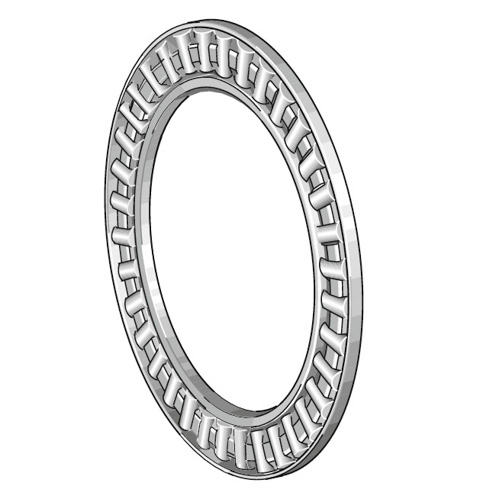

TC3244 Thrust Needle Cage Assembly
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A TC3244

Bearing Material

 N/A Steel

Bearing Width

 N/A 5/64 in

Bore Diameter

 N/A 2.0000 in

Dynamic Load Rating

 N/A 5800 lbf

Maximum Speed

 N/A 4000 rpm

Outside Diameter

 N/A 2.75 in

Overall Width

 N/A 5/64 in

Series

 N/A TC

Static Load Rating

 N/A 30000 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly

Weight

 N/A 0.04 lb
