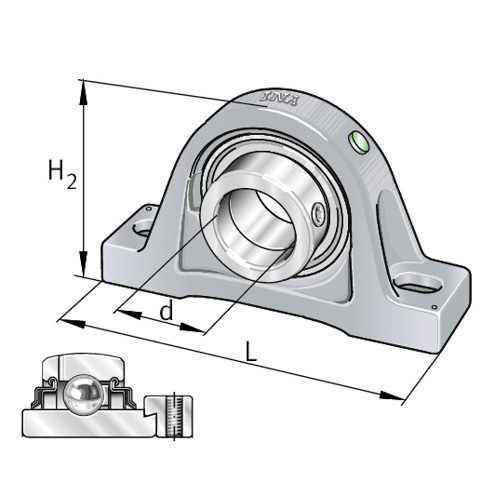

Item # 00557362, INA (Schaeffler) RASEY Series 2.244 Inch (in) Base Width Pillow Block Ball Bearing Unit On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A INA (Schaeffler)
Manufacturer Part Number	N/A RASEY1-15/16
Base to Bore Centerline	N/A 2.2500 in
Base Width	N/A 2.244 in
Bolt Center-to-Center Length	N/A 6.2010 in
Bore Diameter	N/A 1.9375 in
Bore Type	N/A Round
Duty Type	N/A Standard Duty
Expansion Type	N/A Non-Expansion Bearing (Fixed)
Finish/Coating	N/A Uncoated
Housing Material	N/A Cast Iron
Locking Device	N/A Set Screw
Lubrication Type	N/A Lubrication Fitting
Mounting Type	N/A 2-Bolt Base
Overall Height	N/A 117 mm
Overall Length	N/A 202.5 mm
Overall Width	N/A 2-1/32 in
Radial Dynamic Load Capacity	N/A 7900 lbf
Radial Static Load Capacity	N/A 5200 lbf
Series	N/A RASEY
Standards Met	N/A American Bearing Manufacturers Association (ABMA) 14 - 1991 American Bearing Manufacturers Association (ABMA) 15 - 1991 EN-GJL-200/250 to DIN European Standards (EN) 1561 International Organization for Standardization (ISO) 3228
Weight	N/A 6.60 lb
