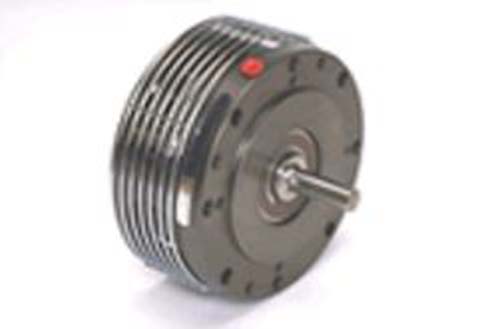

928700 MOU-875 Output Unit
Unit of Measure

Specifications

Supplier Name

 N/A Nexen

Manufacturer Part Number

 N/A 928700

Bore Size

 N/A 0.8750 in

Bore Type

 N/A Straight

Clutch Air Chamber Volume when New

 N/A 1.493 in³

Clutch Air Chamber Volume when Worn Out

 N/A 2.145 in³

Combination Type

 N/A National Electrical Manufacturers Association (NEMA) C-Faced Clutch-Brake

Frame Size

 N/A 143TC 145TC

UPC Code

 N/A 662284166751

Maximum Speed

 N/A 1800 rpm

Open or Enclosed Design

 N/A Open

Overhung Load Capacity

 N/A 281 lb

Rating

 N/A European Conformity (CE) Restriction of Hazardous Substances (RoHS)

Series

 N/A MOU

Shaft Inertia

 N/A 9.06 lb/in²

Weight

 N/A 11.50 lb

Features & Benefits

Features & Benefits

 N/A Air Engaged, NEMA C-Face Mounted, Modular Series of Clutches Brakes or Clutch/Brakes
