Supplier Name |
N/A Nexen |
Manufacturer Part Number |
N/A 912142 |
For Use With |
N/A Pneumatic Control Systems |
Function |

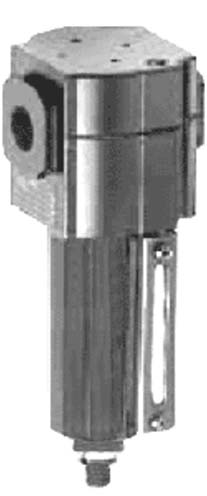

N/A Air Line Filter |
Parts Category |
N/A Other Accessories |
Port Size |
N/A 1/4 in |
Port Type |
N/A National Pipe Thread (NPT) |
Rating |
N/A European Conformity (CE) Restriction of Hazardous Substances (RoHS) |
Series |
N/A Pre and Coalescing Filter |
Temperature Range |
N/A 40 to 120 ºF |
Flow at 20 Pound per Square Inch Gauge (psig) Differential Pressure |
N/A 18 scfm |
Flow at 80 Pounds per Square Inch Gauge (psig) Differential Pressure |
N/A 34 scfm |
Pre-filtration Rate |
N/A 3 µ |
Coalescing Filtration Rate |
N/A 0.1 µ |
Drain Method |
N/A Automatic |
