Supplier Name |
N/A Nexen |
Manufacturer Part Number |
N/A 822431 |

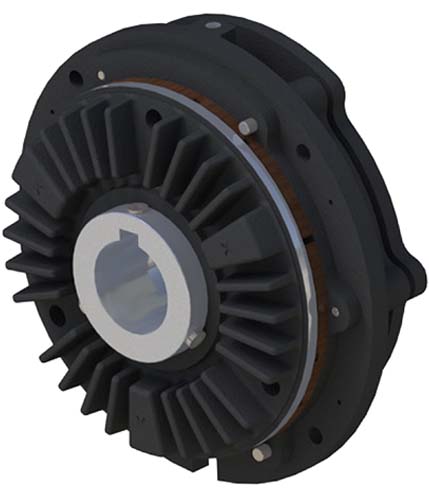

Model Number |
N/A SSE-800 |
Approximate Brake Facing Life |
N/A 548 kW·hr |
Backlash |
N/A 0.39 º |
Bore Size |
N/A 40 mm |
Bore Style |
N/A Bore to Size |
Bore Type |
N/A Straight |
Brake Air Chamber Volume when New |
N/A 122.500 cm³ |
Brake Air Chamber Volume when Worn Out |
N/A 56.900 cm³ |
Brake Facing Edge Color Code |
N/A Purple |
Brake Facing Effective Area |
N/A 198 cm² |
Brake Facing Type |
N/A High Coefficient |
Brake Heat Sink Capacity |
N/A 169000 J |
Brake Peak Thermal Input Rate |
N/A 20.90 kW |
Brake Response Factor |
N/A 0.199 |
Engagement |
N/A Spring Engaged |
Release |
N/A Air Release |
Facing Kit |
N/A 827474 |
Finish |
N/A Black Oxide |
Function |
N/A Stopping and Holding |
Guards |
N/A 826300 |
Maximum Speed |
N/A 1800 rpm |
Maximum Brake Continuous Thermal Dissipation |
N/A 1.66 kW |
Maximum Pressure |
N/A 6.0 bar |
Maximum Static Brake Torque |
N/A 147 N·m |
Minimum Release Pressure |
N/A 4.0 bar |
Open or Enclosed Design |
N/A Open |
Other Accessories |
N/A 823400 (Torque Pin Bracket) |
Overall Diameter |
N/A 229.0 mm |
Overall Length |
N/A 118 mm |
Port Size |
N/A 1/8 in |
Port Type |
N/A British Standard Pipe Taper (BSPT) |
Rating |
N/A European Conformity (CE) Restriction of Hazardous Substances (RoHS) |
Rebuild Kits |
N/A 822470 827610 |
Recommended Control Kits |
N/A 940011 940012 940017 |
Shaft Inertia |
N/A 335.00 kg/cm² |
