Supplier Name |
N/A US Motors (Nidec) |
Manufacturer Part Number |
N/A HO40V2BLF |
Base Speed |
N/A 1780 rpm |
Duty/Condition Type |
N/A Severe Duty |
Enclosure Type |
N/A Weather Protected Type I (WPI) |
Frame Material |
N/A Cast Iron |
Frame Size |
N/A 324TPH |
Frequency |
N/A 60 Hz |
Full Load Current |
N/A 45.00 A91.00 A |
Full Load Efficiency |
N/A 94.10 % |
Harmonization Code |
N/A 8501.52.8040 |
Insulation Class |
N/A F |
Type |

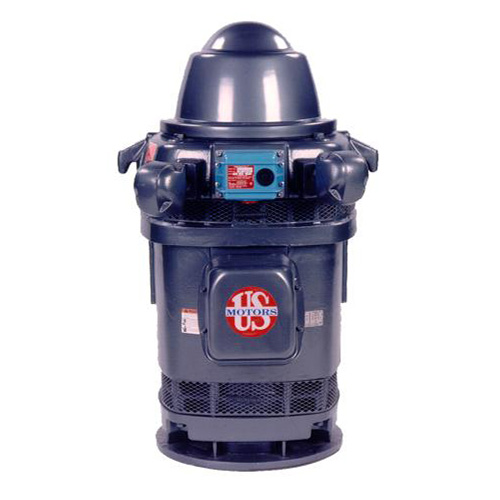

N/A Inverter Duty Motor - Vertical Hollow Shaft |
Power for 4 Poles |
N/A 40 hp |
Phase |
N/A 3 |
Number of Poles |
N/A 4 |
Supply Voltage |
N/A 230 V460 V |
Mounting Type |
N/A Vertical |
National Electrical Manufacturers Association (NEMA) Design Class |
N/A B |
Shaft Diameter |
N/A 2.13 in |
Standards Met |
N/A National Electrical Manufacturers Association (NEMA) |
Synchronous Speed |
N/A 1800 rpm |
Weight |
N/A 635.00 lb |
