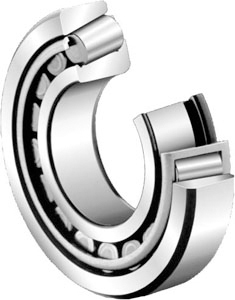

30206-A Tapered Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 30206-A

Assembly Type

 N/A Cone and Cup

Bearing Material

 N/A Steel

Bore Diameter

 N/A 30 mm

Cage Material

 N/A Steel

Closure Type

 N/A Open

Cone Width

 N/A 17.25 mm

Cup Width

 N/A 14 mm

Dynamic Load Rating

 N/A 43500 N

Fillet Radius

 N/A 1 mm

Finish/Coating

 N/A Uncoated

UPC Code

 N/A 4012801037761

Maximum Speed

 N/A 14200 rpm

Outside Diameter

 N/A 62 mm

Overall Width

 N/A 17.25 mm

Series

 N/A 302

Standards Met

 N/A DIN 720 DIN International Organization for Standardization (ISO) 355

Static Load Rating

 N/A 48000 N

Weight

 N/A 0.523 lb
