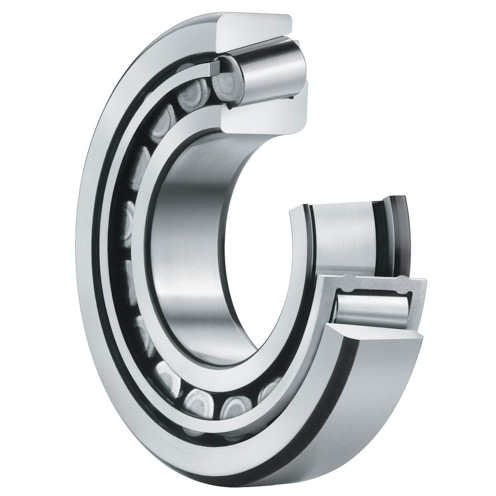

30317-A Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 30317-A

Assembly Type

 N/A Cone and Cup

Bore Diameter

 N/A 85 mm

Cage Material

 N/A Steel

Closure Type

 N/A Open

Cone Width

 N/A 41 mm

Cup Width

 N/A 34 mm

Dynamic Load Rating

 N/A 310000 N

Finish/Coating

 N/A Uncoated

Flange Type

 N/A Non-Flanged Cup

Maximum Speed

 N/A 4050 rpm

Operating Temperature Range

 N/A -30 to 120 ºC

Outside Diameter

 N/A 180 mm

Series

 N/A 303

Standards Met

 N/A DIN 720 DIN International Organization for Standardization (ISO) 355

Static Load Rating

 N/A 375000 N

Weight

 N/A 10.34 lb
