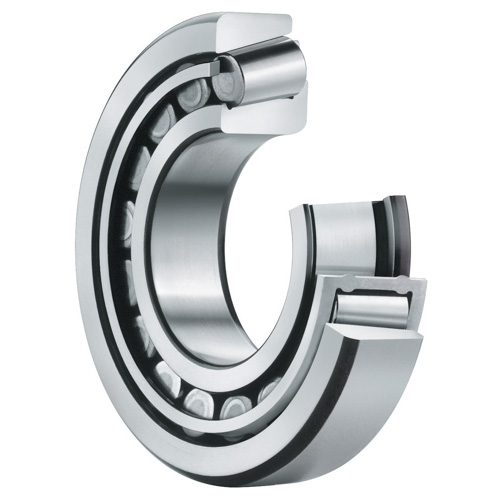

Item # 00131986, FAG (Schaeffler) 320 Series 30 Millimeter (mm) Bore Diameter Tapered Roller Bearing Full Assembly On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A FAG (Schaeffler)
Manufacturer Part Number	N/A 32006-X
Assembly Type	N/A Cone and Cup
Bore Diameter	N/A 30 mm
Cage Material	N/A Steel
Closure Type	N/A Open
Cone Width	N/A 17 mm
Cup Width	N/A 13 mm
Dynamic Load Rating	N/A 38500 N
Finish/Coating	N/A Uncoated
Flange Type	N/A Non-Flanged Cup
Maximum Speed	N/A 13300 rpm
Operating Temperature Range	N/A -30 to 120 ºC
Outside Diameter	N/A 55 mm
Series	N/A 320
Standards Met	N/A DIN 720 DIN International Organization for Standardization (ISO) 355
Static Load Rating	N/A 46500 N
