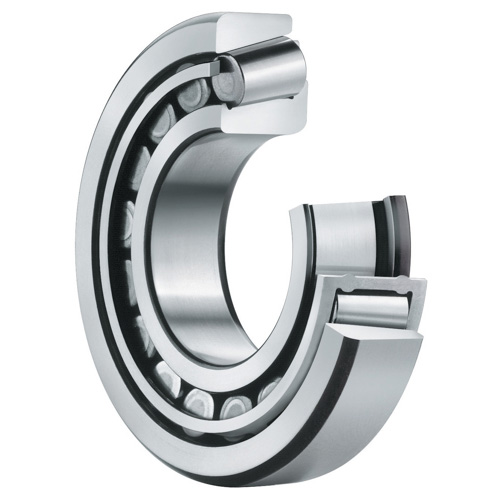

Item # 00132055, FAG (Schaeffler) 320 Series 65 Millimeter (mm) Bore Diameter Tapered Roller Bearing Full Assembly On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A FAG (Schaeffler)
Manufacturer Part Number	N/A 32013-X
Assembly Type	N/A Cone and Cup
Bore Diameter	N/A 65 mm
Cage Material	N/A Steel
Closure Type	N/A Open
Cone Width	N/A 23 mm
Cup Width	N/A 17.5 mm
Dynamic Load Rating	N/A 82000 N
Finish/Coating	N/A Uncoated
Flange Type	N/A Non-Flanged Cup
Maximum Speed	N/A 6800 rpm
Operating Temperature Range	N/A -30 to 120 ºC
Outside Diameter	N/A 100 mm
Series	N/A 320
Standards Met	N/A DIN 720 DIN International Organization for Standardization (ISO) 355
Static Load Rating	N/A 125000 N
Weight	N/A 1.46 lb
