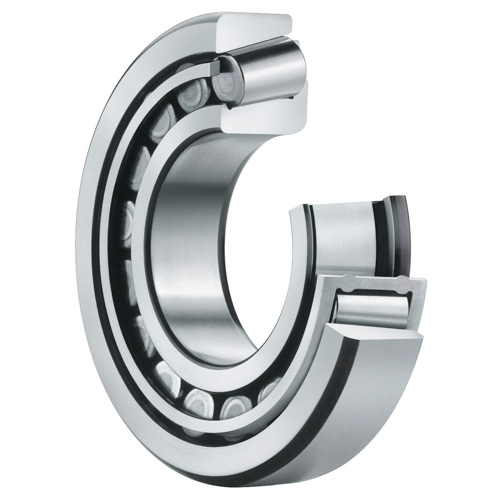

32315-A Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 32315-A

Assembly Type

 N/A Cone and Cup

Bore Diameter

 N/A 75 mm

Cage Material

 N/A Steel

Closure Type

 N/A Open

Cone Width

 N/A 55 mm

Cup Width

 N/A 45 mm

Dynamic Load Rating

 N/A 360000 N

Finish/Coating

 N/A Uncoated

Flange Type

 N/A Non-Flanged Cup

Maximum Speed

 N/A 4450 rpm

Operating Temperature Range

 N/A -30 to 120 ºC

Outside Diameter

 N/A 160 mm

Series

 N/A 323

Standards Met

 N/A DIN 720 DIN International Organization for Standardization (ISO) 355

Static Load Rating

 N/A 475000 N

Weight

 N/A 11.92 lb
